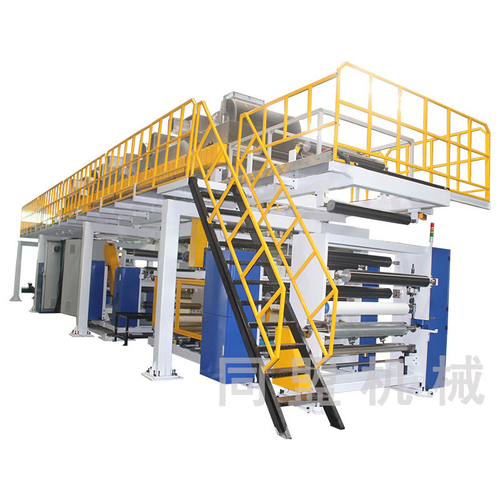

UV curing hardening film coating laminating machine

、

Name: Hardened Film Coating Laminating Machine
This equipment is specially designed for coating a layer of hardened coating on PET, PVC and other substrates, which requires hot air drying and UV curing, and then laminating equipment.
Equipment features: PLC centralized control
of double-station rewinding and unwinding, reducing downtime and roll changing time, precision microgravure coating
double-roller composite structure, steel roller and rubber roller matching
Main parameters:
working width 1350mm
mechanical spokes 1450mm
mechanical speed 5-50m/min, PLC automatic adjustment
Equipment size (LxWxH) 2700x5000x6300mm
Heating power 180KW
UV power 60KW Total
power of the equipment Approx. 300KW
Power supply 380V50Hz The total weight of
the equipment is 50000KG
