Heat-curing OCA coating laminating machine

Thermal curingOCA Coating Laminating Machine

Applicable fields: This equipment is specially designed for the production of precision coating laminating machines for heat-curing OCA optical adhesives

Equipment features:
1. Siemens system PLC centralized control;
2. Various precision coating methods (comma scraper coating, slit extrusion coating, etc.) are optional;
3. Optional with a variety of heat sources for heating (electricity, natural gas hot blast stove, heat transfer oil, etc.);

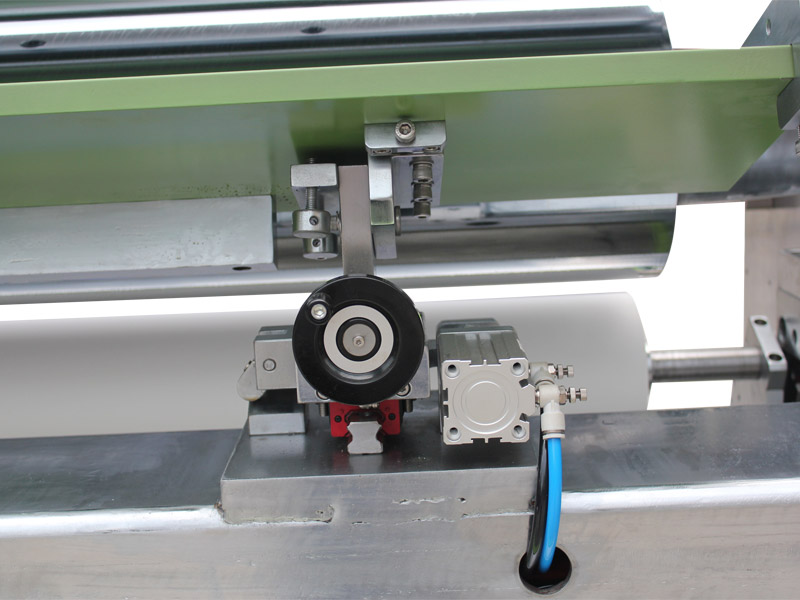

4. The substrate unwinding is equipped with a stripping device, which can adapt to composite materials;

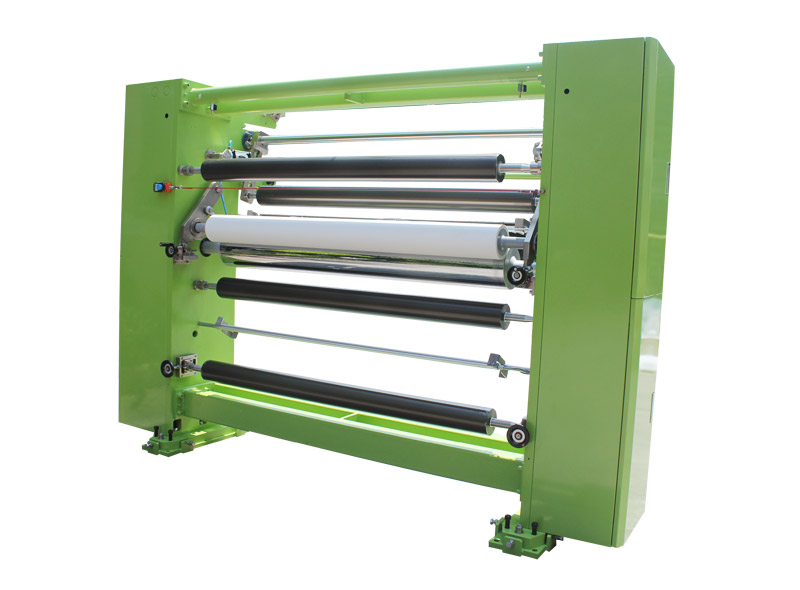

5. Double-roller composite structure, steel roller and rubber roller match;
6. High clean baking drying oven, the maximum temperature is 160 ℃；

Main technical parameters:

• Working width: 1600 mm

• Mechanical spokes: 1700mm

• Mechanical speed: 5~50 m/min, automatically adjusted by PLC

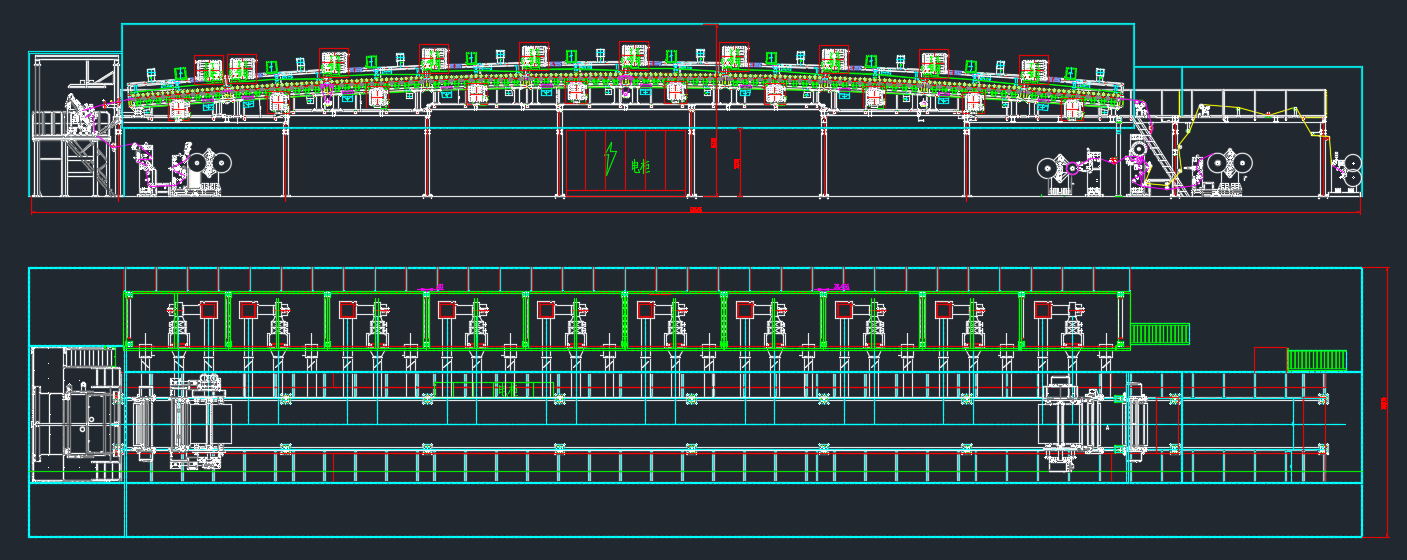

• Equipment size (length * width * height): 55000×12000 ×7000 mm

• Heating power: 800KW adjustable

• Total power: 170KW

• Power supply: 380V 50Hz

• Total weight of equipment: 110000KG
