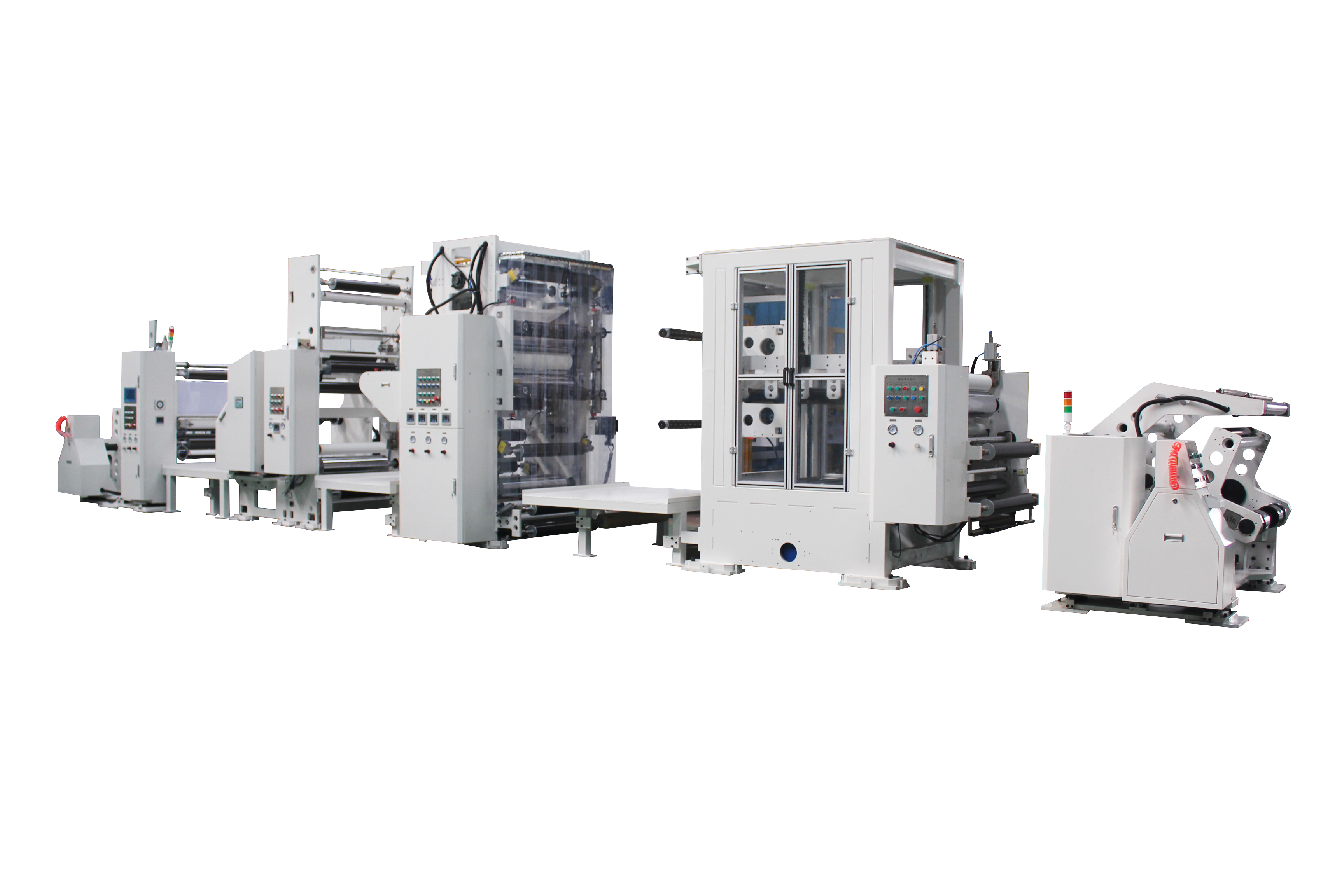

Polarizer coating laminator

Applicable fields of equipment: Mainly used in the composite of high-end protective film, optical film, display polarizer and other materials.

Equipment features:

1. PLC centralized control;

2. Double-station rewinding and unwinding, with storage device, can realize non-stop roll changing;

3. High-precision inclined block automatic gap adjustment mechanism, which can be adjusted unilaterally and bilaterally synchronously;

4. Three-roller composite structure, double steel roller and back-pressure rubber roller cross fit;

5. It has the function of trimming and closing the edge of waste materials;

Main parameters:

Working width: 650mm

Mechanical spokes: 800mm

Mechanical speed: 0-45m/min, PLC automatic adjustment

Device dimensions (LxWxH): 14000x2700x2900mm

Total power of the equipment: about 42KW

Power supply: 380V 50Hz

TOTAL WEIGHT OF EQUIPMENT: 15000KG

(Polarizer Laminator)
